            S-19914/5 Series Automotive Switching Regulator
                    ABLIC's S-19914/5 series reduce conducted emission to about 1/3, making it an ideal small single chip

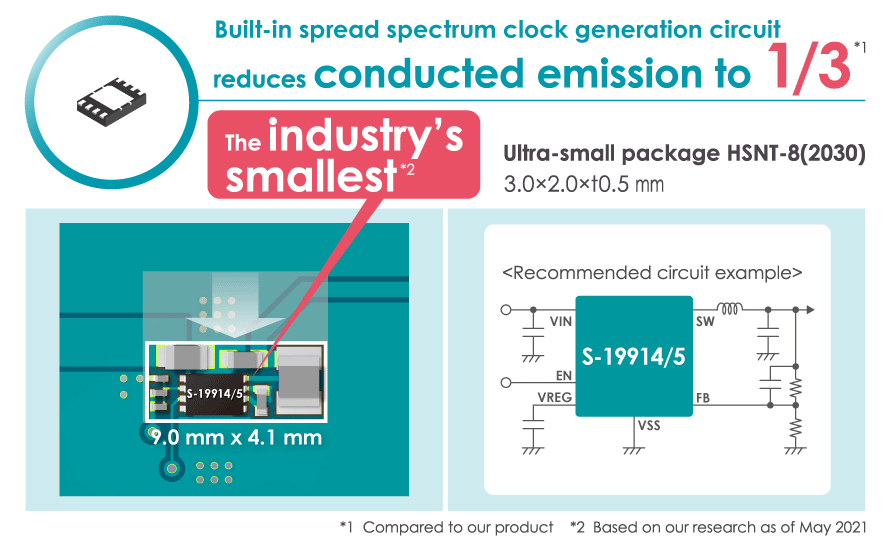

ABLIC's S-19914 and S-19915 series have a built-in spread spectrum clock generation circuit to reduce conducted and radiated emissions. The circuit spreads the operating frequency range across a wide bandwidth during PWM operation to suppress noise peaks for specific frequency ranges reducing noise to about 1/3 of ABLIC’s conventional products.

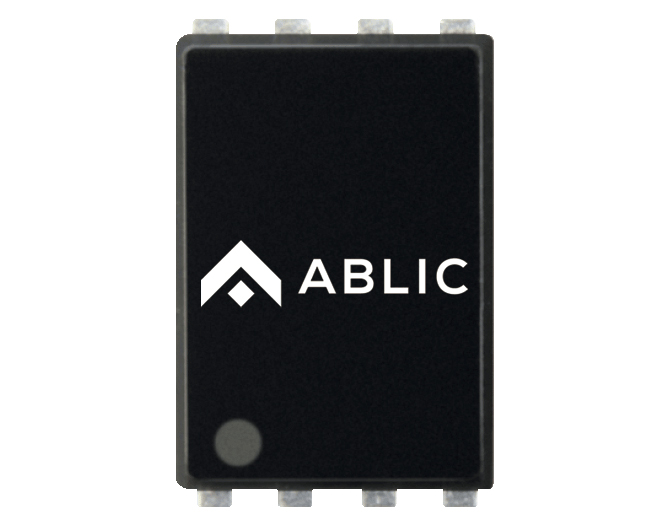

The S-19914 and S-19915 series simplify noise countermeasures and contribute to low-noise automotive cameras and electric control units (ECUs). An automotive-grade switching regulator (DC-DC converter) with a 36 V input capable of direct connection to a battery, 1 A output current, and synchronous rectification housed in an HSNT-8(2030).

Features

Input voltage: 4.0 V to 36.0 V
Output voltage (externally set): 2.5 V to 12.0 V
Output current: 1 A
FB pin voltage accuracy: ±1.5%
Efficiency: 91%
Oscillation frequency: 2.2 MHz typ.
Spread spectrum clock generation function: F_SSS = +6% typ. (diffusion rate)
Overcurrent protection function: 1.85 A typ. (pulse-by-pulse method)
Thermal shutdown function: +170°C typ. (detection temperature)

Short-circuit protection function: hiccup control, latch control
100% duty cycle operation
Soft-start function: 5.8 ms typ.
Undervoltage lockout function (UVLO): 3.35 V typ. (detection voltage)
Input and output capacitors
Ceramic capacitor compatible
Operation temperature range: T_A = -40°C to +125°C
Lead-free (Sn 100%), halogen-free
Withstand 45 V load dump
AEC-Q100 qualified

Applications

ECUs
Automotive cameras
View camera modules
Sensing camera modules
Drive recorders
Camera ECUs
Motor drivers

Electrical applications for vehicle interiors
Rearview mirrors
Heads-up displays
Mood lamps
Automotive uses
Security sensor modules
Sensor units
