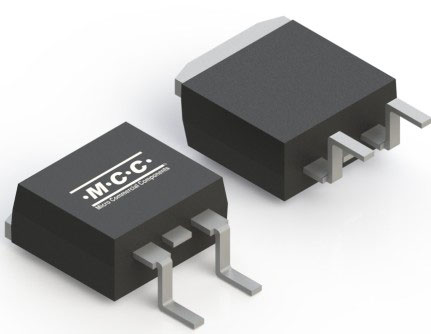

SICB2065XG5MQ-TP/SICB2065XG5M-TP SiC Schottky Diode Series

The Micro Commercial Components (MCC) Gen5 silicon carbide (SiC) Schottky diode series is a family of high-current 650 V SiC Schottky barrier diodes engineered to deliver superior switching efficiency, negligible reverse recovery, and excellent thermal stability for demanding power applications. Housed in the industry-standard D2PAK, these devices are optimized for high-density, high-power designs requiring reliable thermal dissipation and robust electrical performance. Utilizing advanced SiC technology [merged pin Schottky (MPS)], this series provides low forward voltage drop (1.3 V), near-zero reverse recovery behaviors, and stable high-temperature operation (up to +175°C), enabling designers to increase system efficiency, reduce switching losses, and improve power density in power factor correction stages, industrial power supplies, renewable energy systems, and high-current rectification circuits.

Features

• Designed based on the latest MPS technology
• Near-zero reverse recovery current (Q_c = 136 nC), reducing switching losses and improving high-frequency efficiency
• High current capability (I_F = 86 A), supporting demanding power conversion stages
• 650 V V_RRM rating, suitable for high voltage blocking and rectification applications
• Fast switching characteristics, reducing EMI and improving system performance
• D2PAK power package, providing strong thermal dissipation and mechanical reliability
• Positive temperature coefficient helps prevent thermal runaway under high-power conditions
• RoHS and halogen-free, compliant with global environmental and green manufacturing standards
