            TJA1152 and TJA1153 Secure CAN Transceivers
                    NXP's CAN transceivers offer security functionality to protect against security incidents


Image of NXP's TJA1152 and TJA1153 Secure CAN Transceivers NXP’s TJA1152 and TJA1153 secure CAN transceivers provide a seamless and cost-effective solution for securing classical CAN and CAN FD communication without cryptography. The TJA1152 and TJA1153 belong to a generation of automotive high-speed CAN/CAN FD transceivers offering security functions. They provide an interface between a classical CAN or CAN FD protocol controller and the physical two-wire CAN bus. As long as no security incidents have been detected, the TJA1152 behaves like a standard CAN transceiver with standby mode while the TJA1153 offers sleep mode.

Security incidents that can be detected and contained:

Flooding the bus from the local node
Transmitting a CAN message with an identifier that has not been assigned to the local node for transmission
Receiving a CAN message from a remote host with an identifier that is identical to one uniquely assigned to this local node
Tampered messages

Features

HS CAN and CAN FD up to 5 Mbps
Security functionality protects against security incidents
Compliant to ISO 11898-2:2016, SAE J2284-1 to -5, and ISO 7637-2:2004-06
HS CAN and CAN FD arbitration bit rate support up to 2 MBit/s

AEC-Q100 grade-1 qualified (+125°C)
Excellent EST robustness of 6 kV at HBM according to IEC 61000-4-2
Auto biasing
Overtemperature protection

Applications

Telematics control units
Instrument cluster modules
Gear shifter modules

Gateway domain controllers
Dashboard camera modules
Body control units

TJA1152 Application Diagram (Click to Enlarge)

Image of NXP's TJA1152 Application Diagram

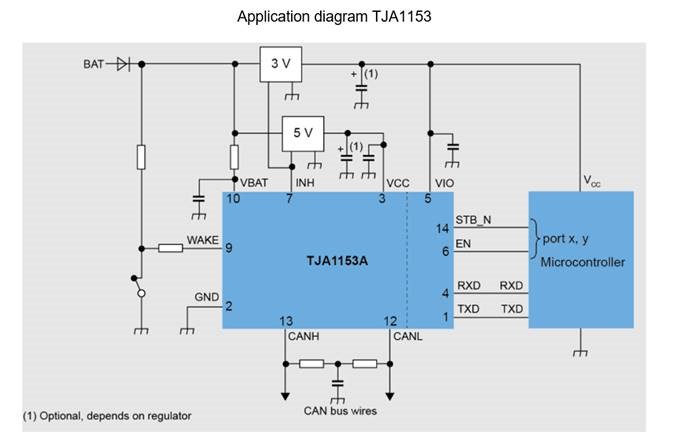

TJA1153 Application Diagram (Click to Enlarge)
