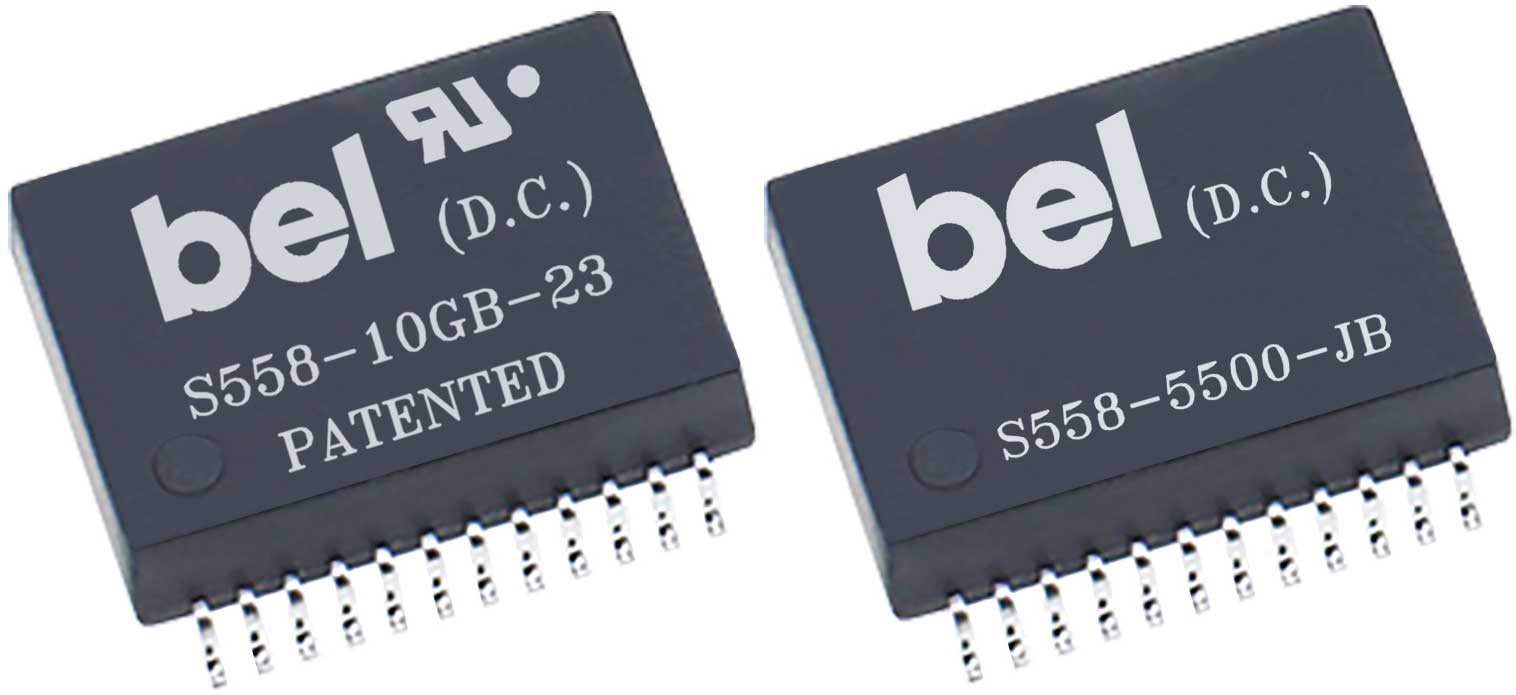

Ethernet Module 100 W 4-pair PoE for NBASE-T / 802.3bz, bt Standards

Bel Magnetic Solutions' 100 W, 4-pair Power over Ethernet (PoE) magnetic modules are aimed at engineers developing products to be compliant with the NBASE-T / IEEE 802.3bz and 802.3bt standards while optimizing performance and reliability. Designers can implement 1GBASE-T, 2.5GBASE-T, or 10GBASE-T to provide the required bandwidth while maintaining the capability of transmitting or receiving up to 100 W of power over applicable Ethernet cable. These modules can be used either as power source equipment (PSE) or powered device (PD). They are designed to be compatible with 1GBASE-T, 2.5GBASE-T, and 10GBASE-T PHYs, including the latest current-mode and voltage-mode designs. The modules are backward compatible to older standards and are available in an industry-standard footprint and pin-out and comply with the performance requirements of IEEE standards 802.3bt and 802.3bz.
