Image of Vishay Dale RCC Series Medium-Power Thick-Film Chip Resistors - Construction

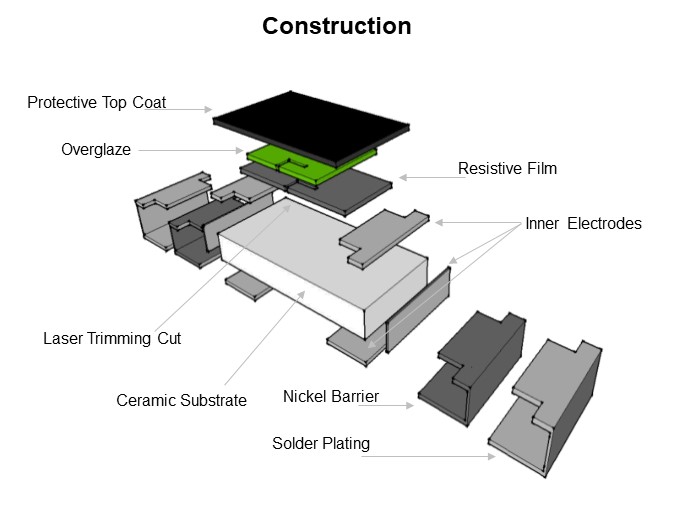

The construction of RCC series parts is similar to the standard thick-film chip resistors in most aspects. They are built on a ceramic substrate chip with wrap-around terminations on each side and inner electrodes, covered by a Nickel barrier, and with a solder plating. On the ceramic substrate, the thick-film Ruthenium Oxide resistive element makes electrical connection between the part terminals, in which the resistive element is laser trimmed to achieve the desired final resistance value, allowing enhanced rated power and increased maximum working voltage. Above the thick-film resistive element is an overglaze layer and a protective top coat.
